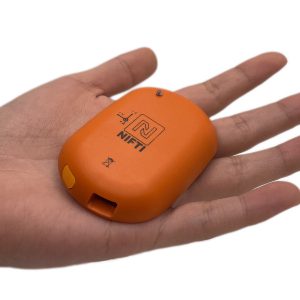

NIFTI In Hand
NIFTI Accelerometer Node
NIFTI Starter Kit
NIFTI In Hand

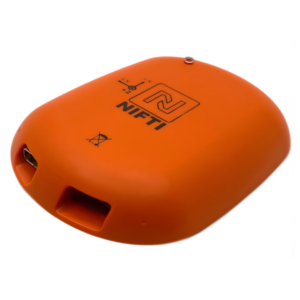

NIFTI Strain Gauge Node NIFTI Strain Gauge Node

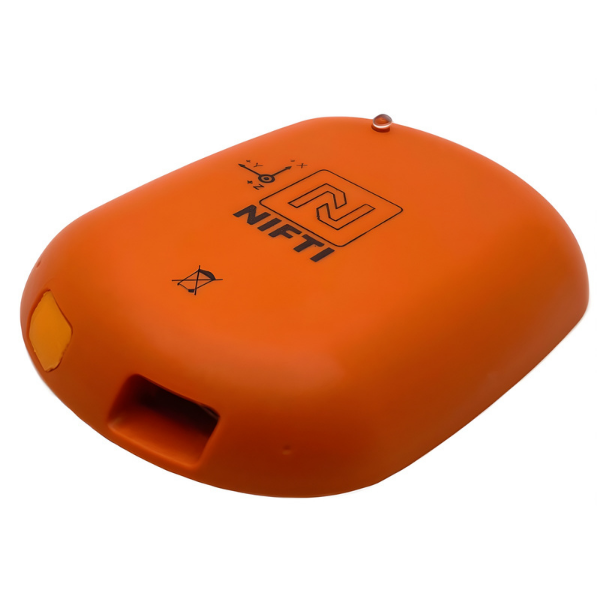

NIFTI Accelerometer Node

$3,135.00

NIFTI™ Sensor Nodes include built-in sensors that collect environmental and structural response data onto flash storage for post-flight analysis. Sensor nodes are mounted adhesively onto aircraft’s outer surface and don’t require mounting holes or fasteners.

The NIFTI Accelerometer Node features high-resolution sensors that measure tri-axial linear acceleration and temperature at a data sampling rate up to 4000Hz.

Datasheet

Description

Sample Resolution 3 channel 24-bit

Sample Rate variable up to 4000Hz

Battery Life 8 hours capture / 22 hours sleep

Storage Capacity 512MB

Size (l,w,h) 67.1mm, 48.8mm, 9.3mm

Mass 40 grams

System Specifications

Sample Rate  Up to 4000 Hz

No. of Sample Channels  3 x 24-bit

Capture/Sleep Times*   2  / 33Hrs @ 4000 Hz  | 8 / 22 Hrs @ 1000 Hz | 16 / 7Hrs @ 500Hz

Charge Time  3 Hrs to fully charge

Interface Specifications

  • Micro USB 2.0

Data Capture Specifications

Flash Storage Capacity  512MB

Data File Format  .csv

Accelerometer Specifications

  • 3-Axis Micromechanical System (MES) Accelerometer

Sensor Bandwith  up to 100Hz

Noise Density [at ± 10g]  up to 80 µg/√Hz

Sensitivity due to temperature  ±0.015 %/°C

g Range/Resolution  ±10 g/0.019 mg, ±20 g/0.038 mg, ±40 /0.076 mg

Temperature Sensor Specifications

Range  -40 °C to +125 °C

Resolution  0.11°C

Radio Specifications

Operating Band  915 MHz (ISM)

Throughput  Up to 1 Mbps

Receiver Sensitivity  -133 dBm

Transmitter Power  +20 dBm

Battery Specifications

Battery Type  Lithium Ion

Capacity  440 mAh

Voltage  3.7 V

Max Charge Voltage  4.2 V

Environmental Specifications

Operating Temperature  -50 °C to +50 °C

Recharging Temperature  0 °C to +45 °C

Recommended Storage Temperature  -20 °C to +45 °C

Maximum Operating Altitude  50’000 feet

Minimum Pressure  11.6 kPa

Operating Humidity**  ≤100%RH

Storage Humidity**  ≤75%RH

Ingress Protection**  IP55

Installation Specifications

Recommended Mounting Tape  3M™ VHB™ Tape 4941F

Safe Installation Period**  3 Months



*Value measured at sea level, at 25 °C using timed capture to fill data storage and remaining battery capacity used for sleep.

**Value subject to operational conditions and requirements

NIFTI Starter Kit

  • NIFTI Sensor Nodes
  • Micro USB 2.0 Cable
  • 3 NIFTI Mounting Pads (pre-cut double-sided tape)
  • Node Removal Tool
  • Sensor Node Carry Case
