NIFTI™ Sensor Nodes use precision sensors to collect environmental and structural response data onto flash storage for post-flight analysis. Sensor nodes are mounted adhesively onto aircraft’s outer surface and don’t require mounting holes or fasteners.

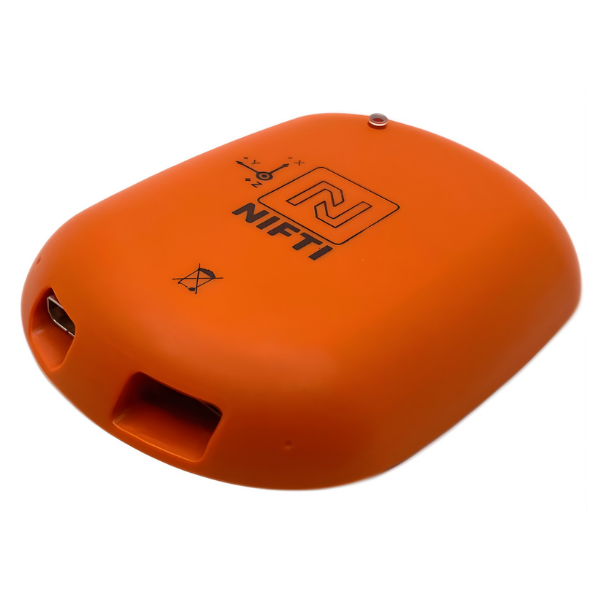

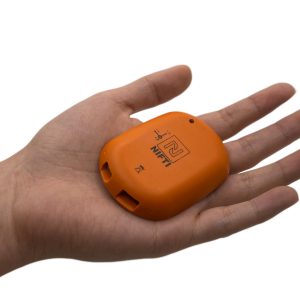

The NIFTI Strain Gauge Node captures high resolution three-channel measurement data from external sensors at a sampling rate up to 2000Hz.

Datasheet

Description

Sample Resolution 3 channel 24-bit

Sample Rate variable up to 2000Hz

Battery Life 4 hours capture / 18 hours sleep

Storage Capacity 512MB

Size (l,w,h) 67.1mm, 48.8mm, 9.3mm

Mass 40 grams

System Specifications

Sampe Rate up to 2000 Hz

No. of Sample Channels 3 x 24-bit

Capture / Sleep Times1   2 / 27 Hrs @ 2000Hz  |  4 / 18 Hrs @ 1000Hz  |  6 / 9 Hrs @ 500Hz

Charge Time 3 Hrs to fully charge

Interface Specifications

  • Micro USB 2.0
  • External Sensor Port to connect with peripheral sensors, e.g. strain gauges, via an analogue/digital interface

Data Capture Specifications

Flash Storage Capacity 512 MB

Data File Format .csv

Analog to Digital Converter Specifications

Data Channels 3

Analog Bandwidth 4000 Hz

Temperature Sensor Specifications

Range -40 °C to +85 °C

Resolution ±0.5 °C

Radio Specifications

Operating Band 915 MHz (ISM)

Throughput Up to 1 Mbps

Receiver Sensitivity -133 dBm

Transmitter Power +20 dBm

Battery Specifications

Battery Type Lithium ion

Capacity 440 mAh

Voltage 3.7 V

Max Charger Voltage 4.2 V

Environmental Specifications

Operating Temperature2 -50 °C to +50 °C

Recharging Temperature 0 °C to +45 °C

Recommended Storage Temperature -20 °C to +45 °C

Maximum Operating Altitude 50’000 feet

Minimum Pressure 11.6 kPa

Operating Humidity2 ≤100%RH

Storage Humidity2 ≤75%RH

Ingress Protection2 IP55

Mechanical Specifications

Enclosure Material ULTEM™ RESIN 1000

Mass2 40 grams

Length 67.1 mm

Width 48.8 mm

Thickness 9.3 mm

Installation Specifications

Recommended Mounting Tape 3M™ VHB™ Tape 4941F

Safe Installation Period2 3 Months



1Value measured at sea level, at 25 °C with strain gauges fitted, using timed capture to fill data storage and remaining battery capacity used for sleep

2Value subject to operational conditions & requirements

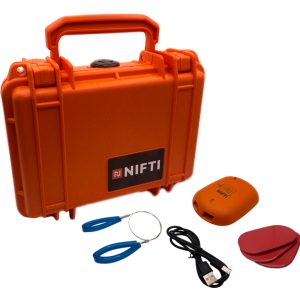

NIFTI Strain Guage Starter Kit

  • NIFTI Sensor Nodes
  • Micro USB 2.0 Cable
  • 3 NIFTI Mounting Pads (pre-cut double-sided tape)
  • Node Removal Tool

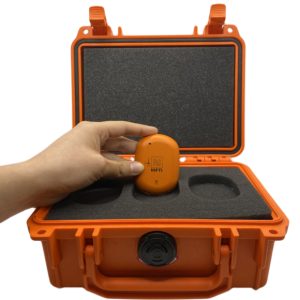

  • Sensor Node Carry Case
